Dr REBUILD's Corvette Parts 63-82 AC Blower Motor RELAY

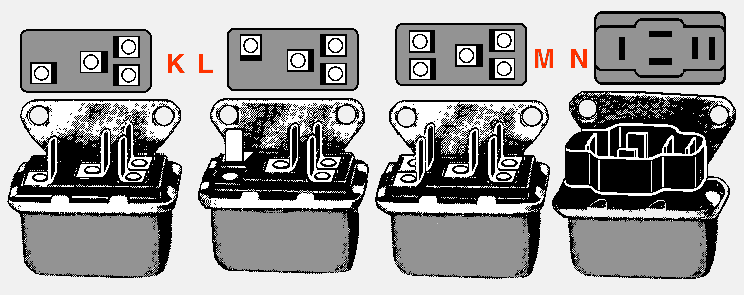

Compare the Quantity & Orientation of the "bayonet" type terminals on these relays to determine your correct model. NOT RETURNABLE if the Factory Seal is Broken.

See

---- BLOWER MOTOR RELAYS ---------------------------------------------

 Part #

K
63-68 BLOWER MOTOR CUT OUT RELAY

9220401

L
69-Early 77 BLOWER MOTOR CUT OUT RELAY

9220422

M
Late 77-79 BLOWER MOTOR CUT OUT RELAY NOTE: this same exact relay is also used a 68-72 Wiper Motor Relay.

9220424

N
79-82 BLOWER MOTOR CUT OUT RELAY

9220426
  63-75 BLOWER RELAY 2 PIECE MTG KIT includes 2 indented hex washer head screws to mount the relay to the evap case. Does 1 car.

8848180
  76-82 BLOWER RELAY 4 PIECE MTG KIT includes 2 indented hex washer head screws & 2 nuts to mount the relay to the plenum. Does 1 car.

8848182
  63-79 BLOWER RELAY HARNESS CONNECTOR molded plastic with 3 wire harness leads to connect to the 3 ganged together bayonet terminals shown in the above picture.

8848184
