Dr REBUILD's Corvette 63-82 AC Compressor & Mount

See

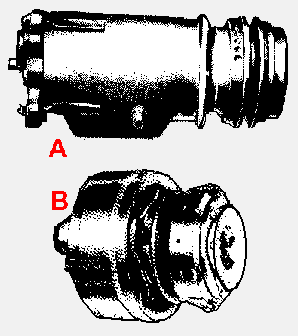

 Delco AC Compressors--------------

Part #

A
63-Early 76 COMPRESSOR with CLUTCH Genuine Delco, Rebuilt by Delco. approximately 12" long. Select
  63-76 without hole for the superheat switch

9220050
  72-74 with hole for the superheat switch

9220049
  63-76 CLUTCH COIL & HOUSING

9220051

B
Late 76-82 COMPRESSOR with CLUTCH New DELCO approximately 8" long.

9220052
  76-82 CLUTCH COIL & HOUSING

9220053
---COMPRESSOR HARDWARE MOUNT KITS
Include all the hardware required to mount the AC compressor and the mounting brackets to the engine. * GRADE 8 hardware as required. Does 1 car.

 AC MODEL ---------------

Part #
-

 AC MODEL ---------------

Part #
64-69 250, 300 HP 27 Piece Kit

9220122
66-67 427 35 Piece Kit

9220128
66-69 350, 365 HP 31 Piece Kit

9220124
68-74 427/454 22 Piece Kit

9220130
70-Early 76 350 28 Piece Kit

9220126
79-81 Metric 20 Piece Kit

9220134
Late 76-78 Non-Metric 21 Piece Kit 9220132 82 Metric 20 Piece Kit

9220136

64-Early 76 Small Block 327 Or 350 AC Compressor Mounting Brackets

See

  LOCATION ---------------

Part #

C
FRONT SUPPORT Cast Iron

9220105

D
REAR SUPPORT Cast Iron NOS

9220106

E
FRONT ADJUSTER Stamped Steel

9220107

F
REAR BRACKET Stamped Steel

9220108

G
REAR STEEL SHIM Use as reqd 9220109

66-74 Big Block 427 Or 454 AC Compressor Mounting Brackets

See

  LOCATION ---------------

Part #

H
FRONT BRACKET Cast Iron NOS

9220110

I
REAR BRACKET Cast Iron NOS

9220111

J
FRONT ADJUSTER BRACKET Steel NOS

9220112

Late 76-82 Small Block 305 Or 350 AC Compressor Mounting Brackets

See

  LOCATION ------------------------------------

Part #

K
76-82 LOWER SUPPORT to exhaust manifold. Requires following Metric bolt

9220114

L
76-82 Metric PIVOT BOLT must be used with the above mounting bracket

9220117

M
76-81 FRONT LOWER BRACE & BELT GUARD mounts between the lower support & block

9220119

N
76-82 REAR ADJUSTMENT BRACKET mounts upper rear compressor to block

9220115

O
76-82 UPPER BRACE mounts between the intake & the rear adjustment bracket 9220120
Additional AC PARTS...
CONDENSERS <> DRIERS <> EVAPORATORS <> EXPANSION VALVE FITTINGS & TUBES <> MUFFLER <> POA VALVE <> RELAY <> RESISTOR <> STV VALVE <> SWITCH <> VIR VALVE <> WATER VALVE
