-Model
------------------------------------------------------------------ |
Part # |

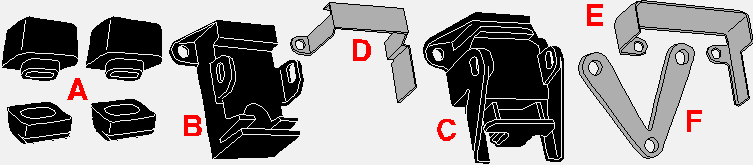

| A |
53-62 MOTOR MOUNT 4 PIECE SET Includes 2 large upper & 2 small lower
rubber mounts with steel inserts. Does 1 car. |
3027103 |
| |
55-62 12 PIECE HARDWARE MOUNTING KIT Includes plated bolts, nuts, washers
& spacers. Does 1 car. |
3027106 |
| |
55-62 WB2C 12 PIECE HARDWARE MOUNTING KIT with "WB2C" bolt
head marks. |
3027112 |
| |
56-62 WATER PUMP BRACKET with notch, (replacement for 56-60). Allows
motor mounts to be attached to block. |
3027110 |
| |
56-62 MOTOR MOUNT FRAME BRACKETS These thick gauge steel stampings bolt
to the frame side rails and accept the above motor mount 4 piece set. Special Order Only |
3027101 |
| B |
63-69 MOTOR MOUNT with the correct designs that will not interfere with
the mounting of the ignition shields. 2 reqd WHY PAY $ 35 ? |
3027114 |
| C |
70-82 MOTOR MOUNT the correct locking style 2 reqd WHY PAY $ 46 ? |
3027115 |
| MOTOR
MOUNT 20 PIECE HARDWARE KITS Does 1 car. |
| |
63-68 MOTOR MOUNT HARDWARE KIT except 427 with AC |
3027120 |
| |
66-68 MOTOR MOUNT HARDWARE KIT 427 with AC |
3027121 |
| |
69-82 MOTOR MOUNT HARDWARE KIT except 427/454 with AC |
3027123 |
| |
69-74 MOTOR MOUNT HARDWARE KIT 427/454 with AC |
3027124 |
| BIG BLOCK MOTOR MOUNT HEAT SHIELDS prevent
heat transfer damage to the mounts |
| D |
68-69 427 MOTOR MOUNT HEAT SHIELD
|
3027116 |
| E |
70-74 454 MOTOR MOUNT HEAT SHIELD
|
3027128 |
| F |
66-74 BIG BLOCK with AC MOTOR MOUNT SHIM These Cadmium plated 1/8"
thick steel shims, mount between the block & the motor mounts. They
are essential to keep the carb float bowls level on all Air Conditioned
Big Blocks. 2 reqd.
|
3027122 |
