-Dr REBUILD's Corvette CARB and FI to INTAKE GASKETS

* AUTHENTIC DIE CUT CONTOURS not after market square patterns

* FOUR MOUNTING BOLT HOLES not 8 hole universal style

* CORRECT PRIMARY & SECONDARY BORE SIZE not universal

* ORIGINAL HEAT SLOT PATTERNS not "One Size Fits All" models

* ALL ARE HIGH TEMP GASKETS not just a fiber replacement

It is difficult to compare our prices on these parts with any other sources. Most other sources list generic parts that fit many different years. We list 22 specific different designs - most other do not even have 10. We have 7 different authentic patterns for 55-62. How can you compare them to 2 or 3 patterns elsewhere?

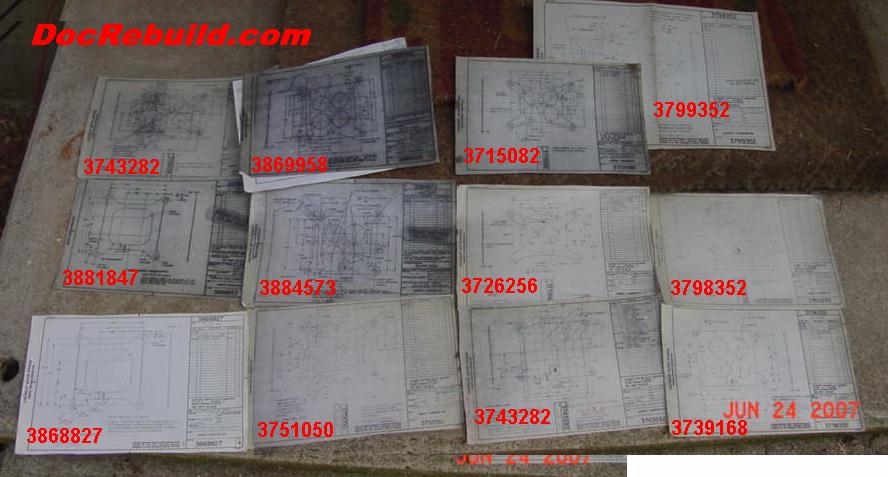

We have 9 different Holley patterns, Blem Products actually has "One Size that Fits All". Here is how one fellow was confused with the $4 bargain from Blem Products of Mechanicsville. Following are copies of GM blueprints for Corvette carb gaskets. If you want a close repro, you have come to the right place. If you want a generic replacement Auto Zone can fill your bill, without the zippy middleman. (The only way I could get them all was to splice 2 pics.)

Following are tripower gaskets.

\

We don't make parts like zippy. We use blueprints.

To View Images add www. to the URL in the above Address Bar and Go (not refresh)



MODEL

 Part #

A
 55-56 1x4. 2x4 Primary & secondary bores are equal sizes. No heat slot.

3726104

B
 57 1x4. Primary & secondary bores are equal sizes. Two "L" shape heat slots.

3726106

C
 57-61 2x4. Diagonally Siamesed primary & secondary bores. No heat slot. 2 reqd

3726108

D
 57-62 F.I. Four Piece Set mounts plenum legs to manifold. REPRODUCTION

3726109

D
 57-62 F.I. Four Piece Set mounts plenum legs to manifold. NOS

7005104

E
 63-65 F.I. Four Piece Set mounts plenum legs to manifold. REPRODUCTION

3726117

E
 63-65 F.I. Four Piece Set mounts plenum legs to manifold. NOS

7005103

F
 58-61 1x4 Primary & secondary bores equal sizes. Two "L" shape heat slots.

3726110

G
 62-65 250 HP Siamesed primary & secondary bores. Round heat slots.

3726112

G
 62-65 250 HP Siamesed primary & secondary bores. Round heat slots. NOS

3726113

H
 62-65 300 HP Primary & secondary bores different sizes. "U" shape heat slots.

3726114

I
 62-63 340 HP Primary & secondary bores different sizes. No heat slots.

3726116

J
 64-65 350, 365 HP Primary & secondary bores different sizes. Dog bone slot.

3276118

K
 65 425 HP One rectangular bore matches intake opening. No heat slot.

3726120

L
 66-67 300 HP Primary & secondary bores different sizes. Dog bone heat slot.

3726124

M
 66-67 350 HP Siamesed RH Primary & secondary bores. No heat slot.

3726127

N
 66-67 300, 390 HP Stainless Baffle Plate mounts above the carb gasket.

3275307

O
 66-67 390 HP Primary & secondary bores different sizes. Dog bone heat slot.

3726126

P
 67-67 400, 435 HP Gasket 3 Piece Set

3726128

Q
 66 425, 450 HP: 67-69 L-88; 70 LT-1. Single square bore. No heat slot.

3726122

R
 68-69 Q-JET Primary & secondary bores different sizes. Dog bone heat slot.

3726130

S
 68-69 Q-JET Stainless Baffle Plate mounts above the carb gasket.

3275309

T
 70 300, 350, 390 HP except CALIF Hourglass bore shape. No heat slot.

3726132

U
 70 300, 350, 390 HP CALIF Gasket & Shield Hourglass bore shape. No slot.

3726140

V
 70 LT-1 CALIF Gasket & Shield. Single square bore. No heat slot.

3726142

W
 71-72 LT-1 Thick Insulator Gasket. Single square bore. No heat slot.

3726123

X
 71-80 Q-JET Thick Insulator Gasket. Hourglass bore shape. No heat slot.

3275311
