Dr REBUILD's Corvette Parts
-56-62 Heater Box Seal Kits select from TWO KITS...
Model Includes Part #

OURs
56-62 A+2B+C 8844500

 Buy it Now
4 pieces
56-62 A+2B+C+D 8844106

 Buy it Now
5 Pieces

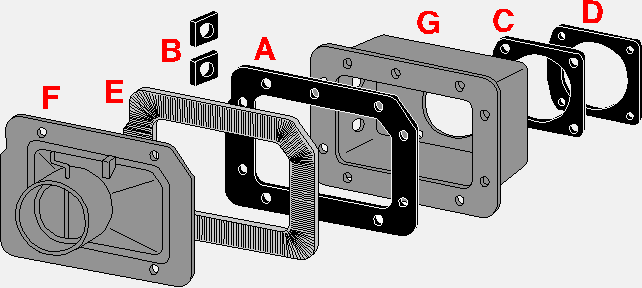

INDIVIDUAL PARTS in the above kits...
- Description Part #
A

56-62 INNER CORE BOX FIREWALL SEAL

8846101
B

56-62 CORE PIPE SEALS Pair

8846102
C

56-62 CORE BOX to FAN CASE SEAL

8846103
D

56-62 FAN CASE to BLOWER MOTOR SEAL

8846104

ASSOCIATED PARTS... Not Included with SEAL KITS

-
Description

Part #
E

56-62 OUTER FIREWALL COVER SEALER

8841398
F

58-62 OUTER HEATER COVER w/ Fresh Air Door & Shaft

8841400

G

58-62 INNER HEATER CORE BOX Hand Laid Fiberglass

8841401

58-62 OUTER HEATER COVER 12 PIECE MOUNT KIT

8841398




56-62 HEATER FRESH AIR HOSE O.E.M. shown above

 Buy it Now

H

56-62 DEFROSTER HOSE O.E.M.
 Buy it Now

8852115

I

58-62 DEFROSTER BOX ASSY Original Pressboard Design

8852618

J

56-62 DEFROSTER BOX 7 PIECE MOUNT KIT

8852116

K

56-62 DEFROSTER HOSE to BOX MOUNT BRACKET

8852117

L

56-57 DEFROSTER BOX ASSY Original Pressboard Design

8852105

M

56-62 DEFROSTER & HEATER CABLE PUSH ON NUTS

8852114

N

56-62 DEFROSTER CABLE to BOX "S" CLIP

8852113

O

56-57 DEFROSTER BEZEL Chrome, 2 reqd

8852110

O

58-62 DEFROSTER BEZEL Primered, paint as reqd, 2 reqd

8852111

P

56-62 DEFROSTER BEZEL 8 PIECE MOUNT KIT

8852109

Q
56-62 CORE HOSE 5/8" Yellow CLAMP, 4 to 8 reqd

4166915
R

58-62 ELBOW HOSE 3/4" Orange HOSE CLAMP, 2 reqd

4166917

S

58-62 HEATER CONTROL VALVE ASSEMBLY

8850110
T

58-62 HEATER CONTROL VALVE to CORE ELBOW HOSE thick wall without the internal cloth reinforcement as was original

8850115
-

58-62 ELBOW HOSE 3/4" Orange HOSE CLAMP, 2 reqd

4166917


56-57 HEATER CONTROL VALVE to CORE HOSE SET

8846004

U

58-62 HEATER CONTROL VALVE to ELBOW PIPE HOSE

8846003

V

58-62 HEATER CONTROL VALVE COPPER ELBOW PIPE

8846007

W

53-EARLY 58 RIBBED 5/8" HEATER HOSE KIT

8845107

W

58-62 RIBBED 5/8" HEATER HOSE KIT

8845108
X

56-62 HEATER HOSE FIREWALL SEALS

8846107
Y

56-57 HEATER HOSE FIREWALL GROMMET

8846006

Z

58-62 HEATER HOSE FIREWALL GROMMET

8846005

HOW TO REPAIR CRACKED HEATER or AC BOXES
