59-62 Seville Grain Vinyl DOOR PANEL &
PARTS |
Part # |
| A |

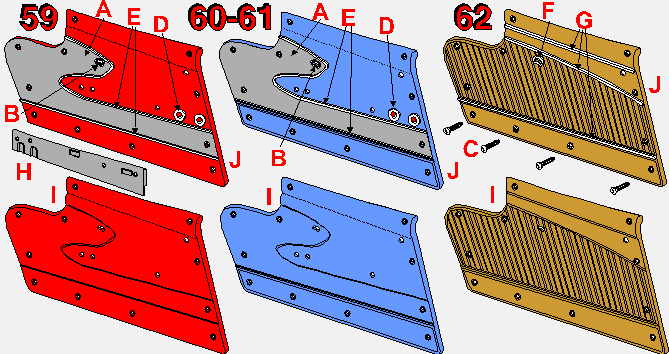

Sheet Metal Sets have the correct Embossed Patterns, are
completely Die Cut with Pre-Punched Mounting Holes and-including Kick Panel
Sheet Metal as required. See illustration for a representation of these
patterns. Kick Sheet Metal also sold separately -- see index. UPS O/S |
| - |
58 DOOR & KICK SHEET METAL with Black Square Dimples
O/S |
1468418 |
| - |
59 DOOR & KICK SHEET METAL with Black Square Dimples
O/S |
1468421 |
| - |
60 DOOR & KICK SHEET METAL with Black Round Dimples
O/S |
1468424 |
| - |
61 DOOR & KICK SHEET METAL with Horizontal Grooves
O/S |
1468427 |
| B |
58-61 DOOR RELEASE BEZEL 2 reqd. |
1045014 |
| C |
58-62 DOOR PANEL MOUNT 22 PIECE TRIM SCREW KIT |
1468531 |
| - |
58-62 DOOR PANEL MOUNT 22 PIECE TRIM EYELET KIT |
1468532 |
| D |
58-62 DOOR PANEL RED REFLECTOR with chrome bezel &
mounting bracket 4 reqd. |
1045015 |
| E |
58-61 CHROME "S" TRIM SET Does 1 car. |
1468417 |
| F |
62 DOOR RELEASE BEZEL 2 reqd. |
1045024 |
| G |
62 CHROME TRIM 6 PIECE SET Does 1 car. |
1468430 |
| H |
59-62 UPPER METAL SUPPORTS Only without foam pad or vinyl. |
1468444 |
| - |
59-62 LOWER DOOR PANEL Include a Die Cut Moisture Resistant
Cardboard Backing with all the vinyl covering for Upper Panel Metal Support
& Matching Armrest Covers & Carpeting. Must reuse your Upper Door
Metal Support. UPS O/S. |
| I |
59-62 MOUNTED Door Panel with UPPER SUPPORTS These include
the above Lower Door Panels plus are mounted with Vinyl Covered Upper Metal
Supports O/S. |
| J |
59-62 DELUXE ASSEMBLED DOOR PANELS These are ready to mount
on your car. They include the above Vinyl Covered Lower Door Panels plus
upper Metal Supports with Padding & the Vinyl Trim with all Sheet Metal,
Chrome "S" Trim Strips, Door Release Bezels & Reflectors.
Includes Arm Rest Covers, but not Arm Rest Chrome or Plastic Bases. UPS
Oversize = O/S. |
