-MODEL
& APPLICATION |
PART # |
| H |

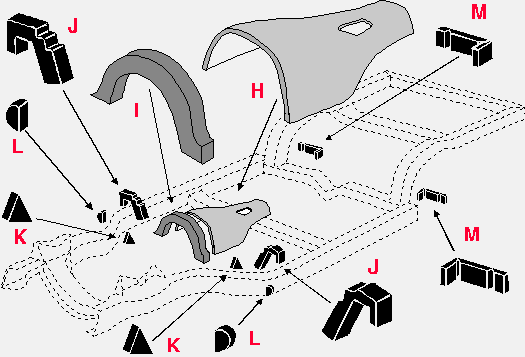

63-75 FOIL & FIBERGLASS TRANSMISSION SHIELD Thick expanded fiber
glass insulation with a thick foil backing. Helps reflect heat and insulate
the floor pan and cockpit from heat transfer from the transmission and the
engine. OEM NOT A REPRO |
1298009 |
| |
63-75 INSULATOR MOUNTING CLIP 4 PIECE SET Use care when pushing these
sharp pointed clips through the above foil insulation. Bend over after installation. |
1298020 |
| |
63-75 CLIP MTG 8 PIECE RIVET SET Mounts the above clips to the body. |
1298019 |
| I |
68-79 "DEAD ON CORRECT" TUNNEL COLLAR SHIELD This 2" thick
foam CHARCOAL COLORED collar slips between the bell housing and firewall.
Glue to the bell housing with weatherstrip adhesive. Often missing or damaged,
it heat transfer radiating from the from the tunnel to the interior cockpit.
If you bought the $ 15.00 GREEN part - too bad - you were sucked in by a
cheaper price and got a replacement. |
1298016 |
| J |
LATE 69-75 FRAME RAIL SHIELDS Die cut 2" thick Black Sponge mounts
between the frame side rails and the underbody in front of the number 2
body mount. It helps prevent heat transfer under the door sills and protects
the body mount. PAIR does 1 car. |
1298017 |
| K |
LATE 69-75 BODY SILL SHIELDS These 1" thick triangular Black shields
mount between the firewall toe board and the splash pans alongside the frame
side rails. They helps prevent heat transfer the cockpit. PAIR does 1 car. |
1298018 |
| * NOTE: On Early 69 models, part
J & K were made from a White rigid Styrofoam type material. We only
produce the Late 69 Design Black Sponge Rubber. |
| L |
73-80 # 1 BODY MOUNT SHIELDS Thick die cut sponge rubber, mounts outboard
of the # 1 body mount. |
9023442 |
| M |
73-80 # 3 BODY MOUNT SHIELDS Thick die cut sponge rubber, mounts to the
rear of the # 3 body mount just in front of the rear body mount inspection
cover plates. |
9023443 |
